Description

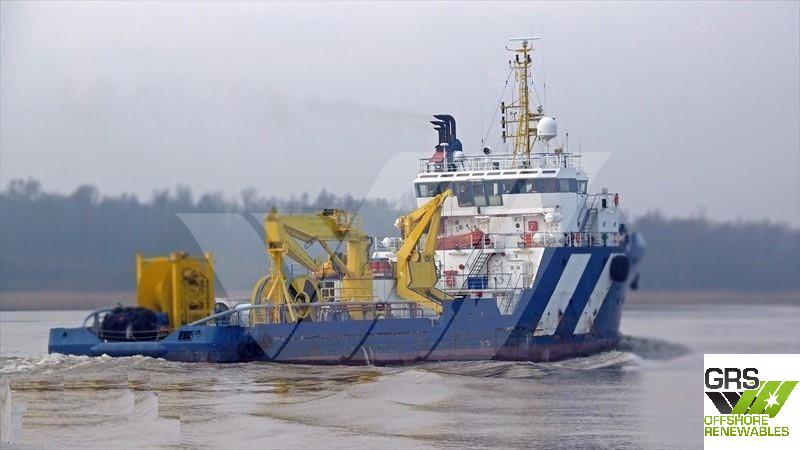

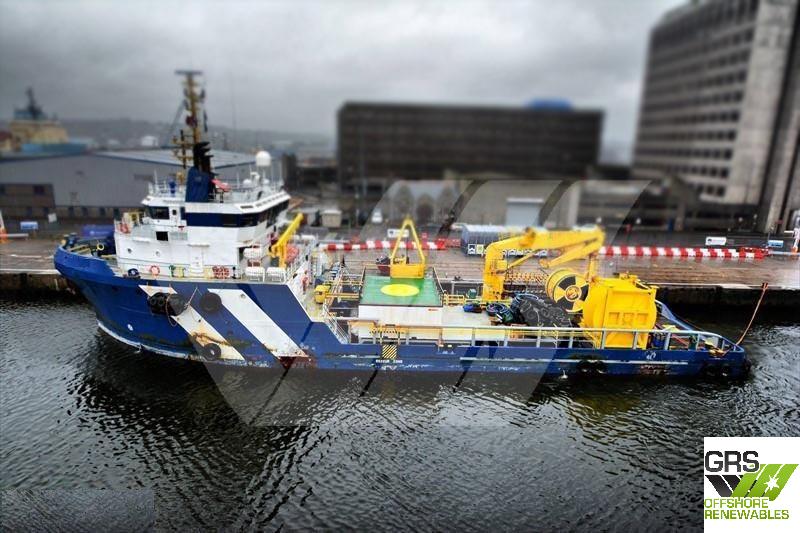

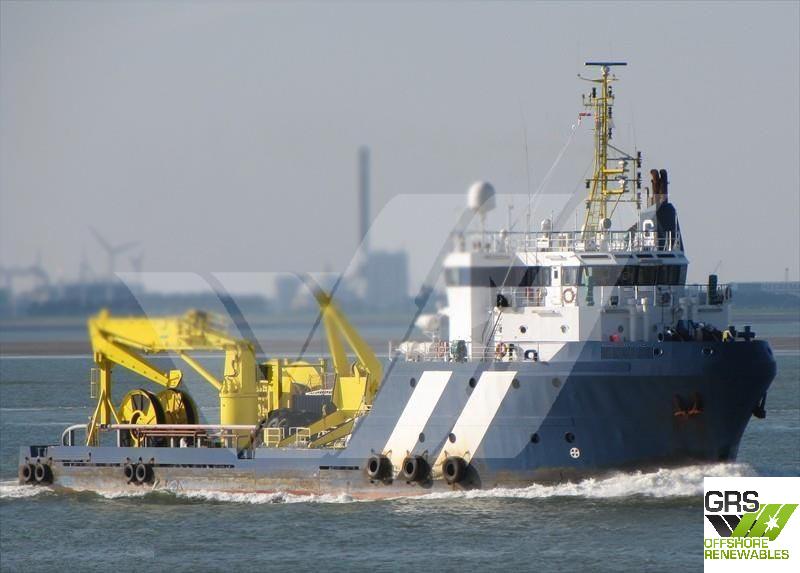

54m PSV well maintained and in class.

Storage:
Clear Deck : 150 m²
Freezer : 4 m³ below deck
3x 20-ft Reefer container on deck
Dry Storage : 20 m³ below deck

Deck Equipment:
Anchor Windlass : 1x Hydraulic 10 Ton @ 15 m/min
Brake holding 31 Ton
Tugger Winch : 1x Hydraulic 10 Ton
Capstan : 2x Hydraulic 5 Ton

Lifting Equipment:
Deck Crane : 1x TTS, GP320
10 Ton SWL @ 15 mtr
A Frame(stbd) : 1x TTS HL 9D 10 Ton SWL
MOB Crane : 1x SVM, 2.0 Ton SWL

General details as follows:
LOA 53,8 m
Beam 13,8 m
Draft 3,8 m

Built in year 2008
Class : Registro Italiano Navale
Flag : Panama
Gross Tonnage of 1.076 and Nett Tonnage of 322

Free Deck area about 150m²
1 Crane / Gear installed with a max lifting capacity of 10 tons
1 Crane / Gear installed with a max lifting capacity of 2 tons
1 AF installed with a max lifting capacity of 10 tons
Deadweight : 1.126 metric tonnes
Bollard Pull : 40 tons
Capable of supplies of 1.133m³ Fuel Oils and 208m³ FW

Total 42 berths
4 cabins with 1 berth
2 cabins with 3 berths
8 cabins with 4 berths

Speed : 11 knots
Engines : 2 x Cummins / Cummins Engine Co Inc KTA-50-M2, 2.500 kw, 1.800 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 3 Caterpillar 260 kw, Bowthruster + No Sternthruster (1 Bow Tunnel thruster 427kw Schottel STt 330 LK 5 ton)

Specifications

Engine(s)

2 x 2.500 kw, 1.800 rpm, Cummins / Cummins Engine Co Inc KTA-50-M2,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network

Disclaimer

GRS performs its services exclusively on the basis of its General Terms and Conditions, which are available at the GRS website www.grs-offshore.com.
All details are given in good faith but without guarantee. Subject to availability.
